In the fascinating world of electronics, the series circuit holds a fundamental position. Characterized by a single pathway through which the electric current can flow, series circuits are omnipresent, from simple battery-operated devices to advanced electrical systems. By delving into the inner workings of a series circuit, we can gain a deeper understanding of the principles that govern the flow of current, elucidating the pivotal role these circuits play in our technologically-infused lives.
What Is a Series Circuit?

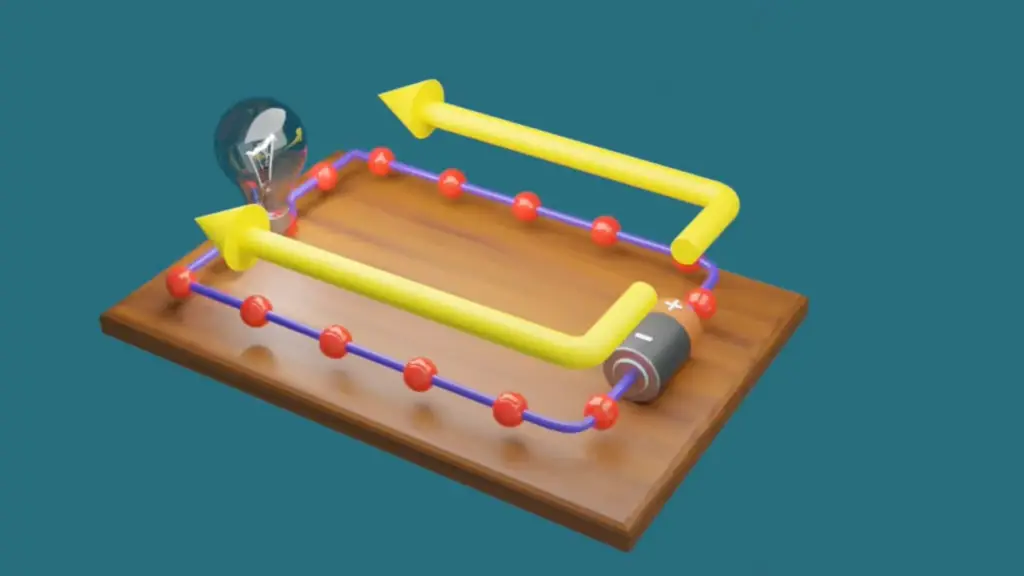

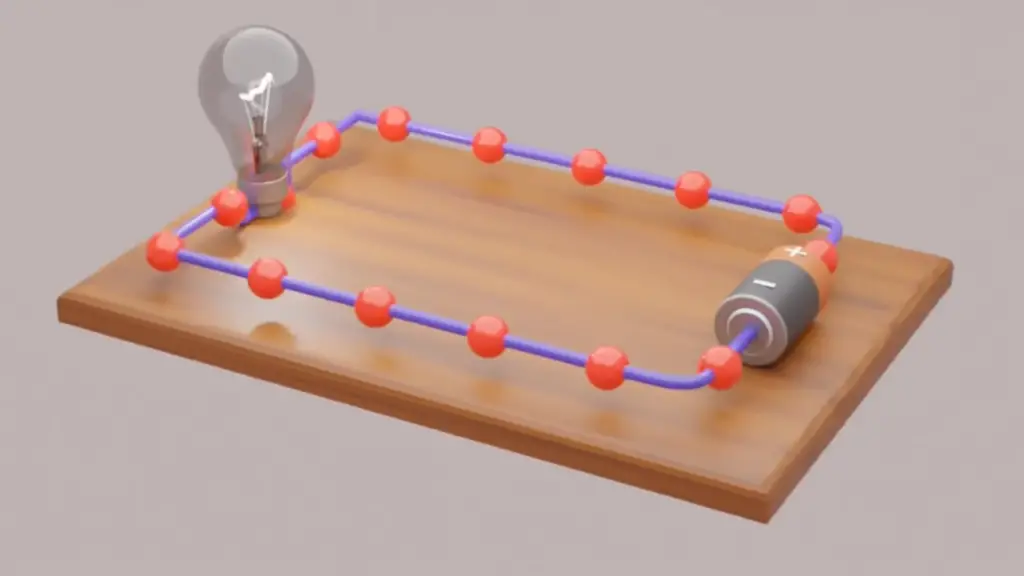

A series circuit is an electrical circuit in which components are connected end-to-end, forming a single loop. In a series circuit, the current flowing through all the components remains constant. However, the voltage across each component varies depending on its resistance and power consumption.
How Does Current Flow in a Series Circuit?
In a series circuit, the total current is the sum of the individual currents flowing through each component. Therefore, if one component has a higher current flow than another, the total current will also be higher. This principle highlights the direct relationship between individual currents and the overall current in a series circuit.
In essence, in a series circuit, the flow of current abides by Ohm’s law. The total current is the sum of the individual currents passing through each component, with voltage distributed in proportion to their respective resistances. Adding components to the circuit increases the total current while simultaneously decreasing the voltage. [1]
What Are The Benefits of a Series Circuit?
One of the main benefits of using a series circuit is its simplicity: it requires only one loop, so it’s easy to understand and manage. Additionally, since all components are connected end-to-end in a single loop, there is no need to match up resistors or other components.
Additionally, series circuits can be used to increase the total voltage of a system by connecting multiple high voltage sources together in series. For example, if two 12V batteries are connected in series, then the resulting voltage across them will be 24V.
Finally, series circuits are often used to provide a more reliable and efficient power supply because the total current is limited by the weakest component in the circuit. This means that if one component fails, it won’t cause a catastrophic failure of other components because they have their own resistances.
What Are The Disadvantages of a Series Circuit?
Although series circuits have some advantages, there are also some drawbacks. One of the main drawbacks is that if one component fails, then all other components downstream from it will not receive power. Moreover, in a series circuit, every component has a significant impact on the total voltage and current. Therefore, even a slight alteration to a single component can profoundly influence the entire system. Finally, series circuits are not well-suited for applications that require variable current or voltage, as the total voltage and current remain constant.
Despite these drawbacks, series circuits are still widely used in many different electrical systems. With proper design and maintenance, they can provide an efficient and reliable power source for a variety of applications. [2]
Applications of Series Circuits
Series circuits are used in many different applications, including automotive systems, power distribution networks, security systems, and more.
In automotive systems, series circuits are often used to provide a reliable power source for headlights and other electrical components. By connecting the battery to the lights in a series circuit, they can be powered simultaneously while still limiting current draw from the battery.
In power distribution networks, series circuits are used to manage the flow of electricity from the source to different locations. By connecting components in series, it’s possible to effectively control the current and voltage along a line while still providing reliable power supply.
Finally, series circuits can also be used in security systems as a way to ensure only authorized personnel have access to certain areas. By connecting multiple sensors in series, it’s possible to create a secure system that can detect unauthorized entry and alert the appropriate personnel.
Factors that Affect the Flow of Current in a Series Circuit
The flow of current in a series circuit can be affected by several different factors, including the total resistance and power consumption. In addition, the quality of wiring and connections used to build the circuit can also have an impact on its performance.
When building a series circuit, it’s important to use components with similar resistances to ensure that all components receive the same amount of current. Additionally, using high-quality wiring and connections can help reduce resistance and improve the efficiency of the circuit.
Finally, it’s also important to consider power consumption when building a series circuit. If one component in the circuit consumes more power than others, then it will draw more current and reduce the voltage available to other components. This can reduce the efficiency of the entire circuit and may even lead to component failure.
Challenges with Series Circuits
A series circuit presents many challenges because the current is shared between components in the circuit. In order for a series circuit to work, all of the components must be functioning properly, or else the entire circuit will fail. This means that if one component in a series circuit fails, it can potentially damage all of the other components connected to it. Furthermore, since all of the components are connected in series, they must all be of similar resistance value – if not, then the current will flow more easily through one component than the other. [3]
Adding or deleting a component from a series circuit also affects its overall performance. If you delete a component on one side of the circuit, it can cause an imbalance in current distribution leading to potential overloads or damage to all of the components. Similarly, adding a component can cause an imbalance and lead to burnt or damaged components.
The key takeaway for series circuits is that if one part fails, it has the potential to take down the entire circuit. This is why you should always be sure you are using compatible parts when building a series circuit and why it is recommended to use a fuse or circuit breaker when possible. Doing so will help ensure that if any component in the circuit fails, the current flow can be stopped before causing widespread damage.
In short, series circuits require careful consideration of all parts involved in order for them to perform as expected. With the right components and precautions, however, they can be excellent ways to provide consistent current flow.
How to Calculate Current in a Series Circuit?
Calculating the current in a series circuit is fairly straightforward. All you need to do is start with the total voltage supplied and then divide it by the sum of all of the resistances in the circuit. This will give you the overall current that flows through each component connected in series.
For example, if we had a 12-volt battery with three resistors connected in series, the total resistance of the circuit would be equal to the sum of the individual resistances. If we assume that each resistor has a resistance value of 4 ohms, then the total resistance would be 12 ohms (4+4+4 = 12). [4]
With this information, we can calculate the current flowing through each component by dividing the voltage (12 volts) by the total resistance of the circuit (12 ohms), which gives us a current of 1 amp. This means that each resistor will receive 1 amp of current, provided that all components in the series are functioning properly.
In short, calculating current in a series circuit is simply a matter of adding up all of the resistances in the circuit and then dividing the total voltage supplied by this value. This will give you the overall current that each component is receiving, allowing you to better understand how your series circuit is working. [5]
Tips for Working with a Series Circuit
When working with a series circuit, it’s important to keep in mind the following tips:
- Make sure you are aware of the voltage drops across all components. The total voltage drop should equal the input voltage.
- Understand how current flows through each resistor and component in the circuit. Current is constant throughout the entire loop, meaning the same amount of current is flowing through each component in the circuit.
- Double check your work to make sure all components are connected properly and that no pieces of wire or other connections have been accidentally left out.
- Be aware of any resistors that could be damaged by too much heat or current. If necessary, add a resistor in series with an LED or transistor to reduce the amount of current flowing through it.
- Don’t forget about other circuit elements such as capacitors, inductors, and transformers which could affect the flow of current in your series circuit.
- Remember that a series circuit only works if all components are properly connected. A single broken connection can render the entire circuit useless.
- Always use safety measures such as electrical gloves and insulated tools when working with circuits to prevent electric shocks. [6]
FAQ
What is a series circuit?
A series circuit is a type of electrical circuit that consists of components arranged in a loop. Current flows from one component to the next, with the total current being equal to the total voltage across all components.
What are some advantages of using a series circuit?
Using a series circuit can be more efficient than using multiple parallel circuits because it allows for a simpler design and requires fewer components. It also simplifies the task of troubleshooting any problems that might arise, since all components are connected in series.
What are some disadvantages of using a series circuit?
The main disadvantage of using a series circuit is that if one component fails, it can cause the entire circuit to fail. Additionally, if there is excessive current in the circuit, components can be damaged. It’s important to select components with the appropriate voltage and current ratings for a given circuit.
What happens to the total resistance in a series circuit?
In a series circuit, the total resistance increases as more components are added. This is because each additional resistor adds to the overall resistance of the circuit. In addition, the total resistance of a series circuit is equal to the sum of all individual resistors in that circuit.
How does changing the number of components in a series circuit affect the total current?
The total current in a series circuit is determined by the voltage of the power source and the total resistance of the circuit. As more components are added to a series circuit, the total resistance increases, which results in a corresponding decrease in the total current. This means that changing the number of components in a series circuit affects its total current.
What precautions should be taken when working with a series circuit?
When working with a series circuit, it’s important to take safety measures such as wearing electrical gloves and using insulated tools. Additionally, it’s important to double check the connections to make sure all components are properly connected and no pieces of wire have been left out. Additionally, be aware of any resistors that could be damaged by too much heat or current and consider adding a resistor in series with an LED or transistor to reduce the amount of current flowing through it.
What are the key characteristics of a series circuit?
The key characteristics of a series circuit are that current is constant throughout the entire loop, the total voltage drop is equal to the input voltage, and the total resistance increases as more components are added. Additionally, a series circuit only works if all components are properly connected; a single broken connection can render it useless. As long as these key characteristics are understood and followed, working with a series circuit can be a successful endeavor.
How is the voltage drop distributed in a series circuit?
In a series circuit, the voltage drop is distributed evenly among all of the components. This means that each resistor or component in the circuit will have a proportionate amount of the total voltage drop across it. Additionally, as more components are added to a series circuit, the total voltage drop increases due to their cumulative resistance. Understanding this is key when working with series circuits.
What happens when one component fails in a series circuit?
If one component fails in a series circuit, the entire circuit will stop working. This is because current must pass through each component for the circuit to function properly; if one component fails, then no current will be able to pass through it and the circuit will not work. It’s important to use high-quality components when building a series circuit to reduce the chances of a component failing.
What is the difference between a series circuit and a parallel circuit?
The main difference between a series circuit and a parallel circuit is that in a series circuit, all components are connected in one loop while in a parallel circuit, components are connected separately to both power sources. This means that if one component fails in a series circuit, it can affect the entire circuit but in a parallel circuit, only the affected component will be affected. Additionally, current is constant throughout a series circuit while in a parallel circuit, each component receives its own distinct current. Understanding these differences is key when choosing between using a series or parallel circuit.
Can I mix components from both series and parallel circuits in the same circuit?
Yes, you can combine components from both series and parallel circuits in the same circuit. This is called a hybrid circuit and can be used to create more complex designs that require both series and parallel components. When creating a hybrid circuit, it’s important to pay close attention to the current flow as well as the total resistance of the circuit. This will ensure that the design is both efficient and safe.
What other factors should I consider when designing a series circuit?
In addition to selecting components with the appropriate voltage and current ratings, it’s important to select components that are durable and reliable. Additionally, be sure to use insulated tools and wear personal protection equipment such as electrical gloves. Finally, consider adding a voltage regulator to control the current in the circuit and protect components that could be damaged by too much heat or current. Taking these precautions will help ensure a safe and successful series circuit design.
What are some real-life applications of series circuits?
Series circuits are used in a wide range of applications, including automotive lighting, Christmas lights, and electrical motors. Series circuits can also be used to monitor battery levels or control power to various components. Additionally, series circuits can be used for voltage regulation and as a current limiter to prevent overloading components.
How is power consumption calculated in a series circuit?
Power consumption in a series circuit is calculated by multiplying the voltage of the power source by the total current in the circuit. This means that if one component has a higher resistance than another, it will consume more power. Additionally, as more components are added to a series circuit, its total resistance increases and so does its power consumption.
Are series circuits more efficient than parallel circuits?
It depends on the specific application. In some cases, series circuits are more efficient than parallel circuits due to their ability to evenly distribute voltage and current throughout all components. However, in other cases parallel circuits may be more efficient due to their ability to draw more current from a given source. Ultimately, it’s important to evaluate each application individually and determine which circuit.
Useful Video: How AC Current Flows Animation.
Conclusion
Series circuits are an important tool for a wide range of applications, from automotive lighting to electrical motors. Understanding the key characteristics of series circuits is essential when designing and building a circuit. Additionally, it’s important to consider power consumption, voltage drop distribution, and component reliability when working with series circuits. With these points in mind, creating a successful series circuit can be a rewarding experience.
